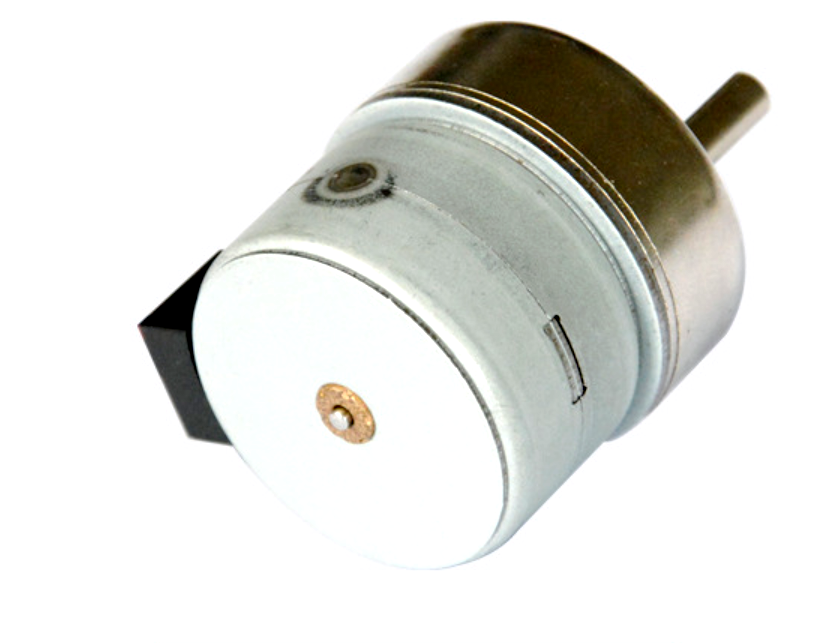

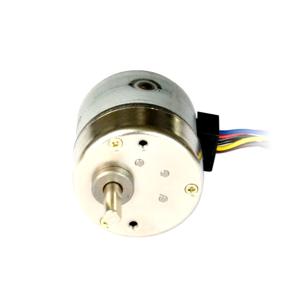

35mm Geared Stepper Motor with a 1:30 reduction ratio – a high-performance permanent magnet solution engineered for precision automation. Measuring 35mm in frame diameter, this compact yet robust motor fits seamlessly into mid-sized equipment setups, from automated workstations to intricate machinery. The 1:30 gear reduction ratio enhances torque output significantly, ensuring steady, vibration-free motion even when handling moderate loads, while its permanent magnet design delivers consistent power efficiency.​

Designed with low-noise operation as a key feature, it minimizes acoustic interference – critical for environments like laboratory automation, medical device assembly, or office-based precision conveyors. Whether integrated into robotic arms for precise part placement, automated assembly lines requiring tight positional control, or small-scale manufacturing equipment needing reliable speed regulation, this motor stands out. Its ability to maintain accurate step movements and stable stop positions under varying loads makes it a top choice for applications where precision and quiet performance are non-negotiable.​

Specifications

Product Name	Geared stepper motor
Model	35BY-11G
Resistance	100Ω ± 10%/ phase (25℃)
Current Per Phase	100 mA/phase(800PPS)
Max Starting Frequency	500 pps
Max Response Frequency	700 pps
Excitation Method	2-2 phase excitation
Drive Mode	Bipolar drive
Pull-out Thrust	More than 1000g at 100 pps
Insulation Class	Class F for one second
Insulation Strength	100 V AC for one second
Insulation Resistance	50 mΩ DC 500 V
Operating Temperature Range	-0~+ 55 ℃

Mechanical Dimension:MM
