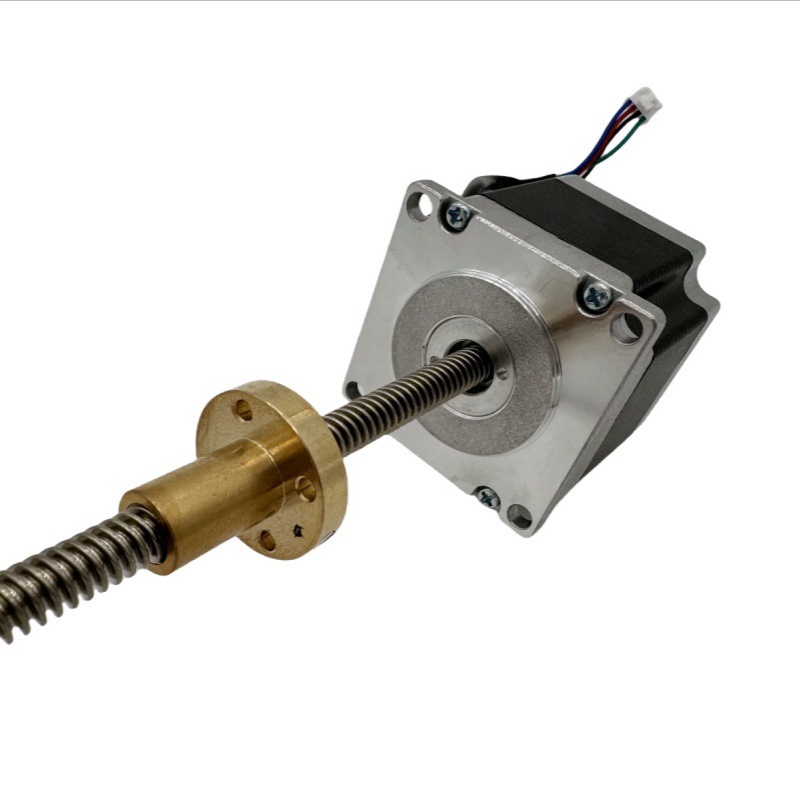

The 1.8° Step Angle NEMA14 linear stepper motor, measuring 35mm, is engineered to excel in CNC micro-machining applications, paired with a high-precision 0.6096mm pitch lead screw. Its hybrid design merges the reliability of stepper technology with linear motion efficiency, ensuring ultra-fine positioning control critical for intricate machining tasks—from engraving tiny components to cutting precision parts.​

With a 1.8° step angle, it delivers exceptional angular resolution, translated by the 0.6096mm pitch lead screw into smooth, incremental linear movement—ideal for maintaining tight tolerances in micro-machining setups. The compact 35mm frame fits seamlessly into space-constrained CNC systems, while its robust construction ensures consistent performance under the demands of continuous operation.​

Whether used in small-scale CNC routers, micro-lathes, or precision cutting equipment, this motor balances power and precision, making it a go-to choice for manufacturers and hobbyists seeking reliable linear motion in CNC micro-machining workflows.​

Parameter sheet:

Motor type	Hybrid stepper motor
Motor size	35mm (NEMA14)
Step angle	1.8°/step
Step length	0.003mm/step
Phase No.	2 phases
Phase resistance	1.8Ω±10%
Lead screw type	P0.6096*1N
Lead scew length	55mm (Adjustable)

Screw rod Specification of lead screw:

Lead screw diameter(mm)	Screw Lead (mm)	Screw pitch(mm)	Travel per step(mm)	Lead Screw Diameter(mm)	Screw Lead(mm)	Screw Pitch(mm)	Travel per step(mm)
TR8	1	1	0.005	Tr6	2	1	0.01
	2	2	0.1		4	1	0.02
	3	1.5	0.015		6	1	0.03
	4	2	0.02		12	2	0.06
	8	2	0.04
	10	2	0.05
	12	2	0.06
